Potentiometer Tester

Home 4 Previous Machines4 Potentiometer Tester

  Machine Category: FULLY AUTOMATIC

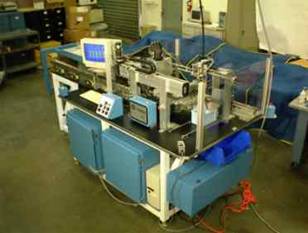

Solatron has built several Potentiometer testers over the years. One of the most recent Potentiometer testers we have built is shown below. This machine has three stations which surround a servo-driven turntable. The parts are loaded on manually and then indexed over to the test station. Here the part is tested for Start position, Low End Voltage, Resistance, Linearity, High End Voltage, and Hysteresis. The parts are then rotated over to a print station which prints date codes and logos or the appropriate reject data. The part is then either placed into a good bin or a reject bin. This particular machine tests potentiometers that are used for automotive seats.

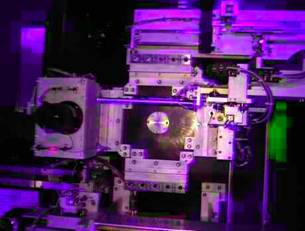

Watch Video of this machine.

CLICK HERE





Machine Specifications





Machine Cycle Time

Aprox. 30 sec. per 5 parts (depending on pot rotations)

Nest Positions

4 Nests on circular Index Table. Each nest holds 5 parts

Standard Stations Include

Load

Test

Print

Unload

Total Stations

4 Standard Stations

Index Drive Type

Solatron Tire Indexer

Air Requirement

60psi

Electrical Requirements

120VAC, 60Hz, x Amps

Special Requirements

None

Expected Run Time

Two 8 hour shifts per day

Load Machine Via

-Pallets on XY Table or

-Vibratory Bowl

Unload Machine Via

-Pallets on XY Table or

-Vibratory Track (to feed another machine) or

-Bucket

Safety Features

-Lexan or Light Curtain machine guards. Key switch provided for enable/disabling the guards.

-Solatron Tire Index Drive for break-away indexing should an object get stuck in index dial.

-Emergency stop feature.

Extra Options



Approximate Machine Price:  $175,000

 If you are interested in a machine of this type, please call (310) 325 0463 or E-Mail sales@solatron.com with your requirements.



NOTE: All options listed above can be modified to fit your specific application. Above options are some of the most commonly used. Price reflects common components.



__________________________________________



  Machine Category: MANUAL LOAD

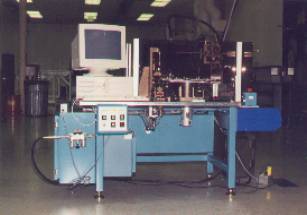

This machine is very similar to the machine shown above except it does not automatically load the parts onto the indexer. The parts must be loaded manually by the operator.





















Below are some sample computer screens that the above machine displays.

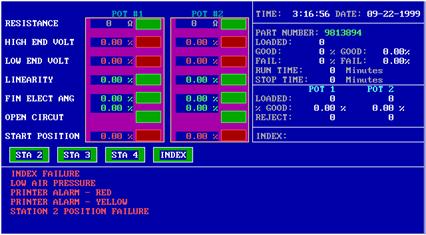

Main User Interface screen

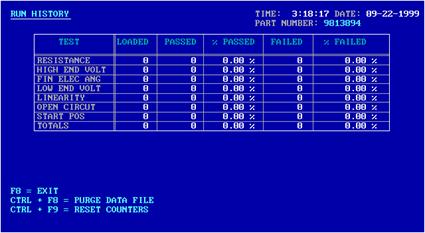

Part Run History screen

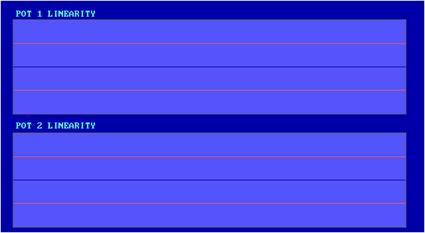

This is one of the many Graph Display screens.



Machine Specifications





Machine Cycle Time

Aprox. 30 sec. per 5 parts (depending on pot rotations)

Nest Positions

4 Nests on circular Index Table. Each nest holds 2 parts

Standard Stations Include

Load

Test

Print

Unload

Total Stations

4 Standard Stations

Index Drive Type

Solatron Tire Indexer

Air Requirement

60psi

Electrical Requirements

120VAC, 60Hz, x Amps

Special Requirements

None

Expected Run Time

Two 8 hour shifts per day

Load Machine Via

-Operator

Unload Machine Via

-Bucket

Safety Features

-Lexan or Light Curtain machine guards. Key switch provided for enable/disabling the guards.

-Solatron Tire Index Drive for break-away indexing should an object get stuck in index dial.

-Emergency stop feature.

Extra Options



Approximate Machine Price:  $110,000

 If you are interested in a machine of this type, please call (310) 325 0463 or E-Mail sales@solatron.com with your requirements.



NOTE: All options listed above can be modified to fit your specific application. Above options are some of the most commonly used. Price reflects common components.
